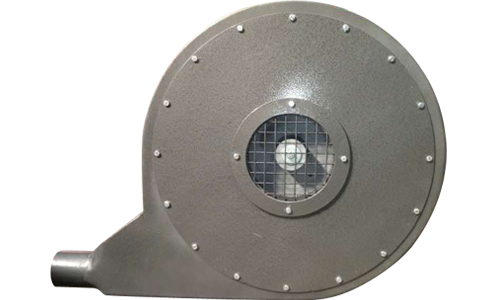

HP Series

High Pressure Air Fans

500 – 1400

Volume up to, 1,500L/s

up to 20 kPa

up to, 600o C

Clean air – Dirty and/or corrosive air – high pressure applications. HP Series Fans are at work in many diverse applications here in Australia and in locations throughout the world. Clean air applications include combustion air, air drying, primary air ejectors, and product cooling. This fan can also handle pneumatic conveying systems. The HP Series fan is ideal for corrosive exhaust, air pollution systems and chemical processing. For corrosive gases, a stainless steel impeller and housing is available, or a lower cost rubber-lined, mild steel housing will often fulfil the requirements. Special steels and coatings are used for hard wearing environments.

To meet specific applications, HP fans can be built with stainless steel or alloy construction. Split housings facilitate impeller removal without disturbing connecting ductwork. Belt guards and shaft coolers are also common options, in addition to the various housing and impeller liners. Our engineers are available to design and build the pressure fan that meets your exact requirements.

  • Designed to meet specific customer performance and mechanical requirements.
  • Available in arrangements 1, 3, 4, 7, 8, and 9
  • All housings are standard with welded construction throughout
  • Fans are equipped with flanged inlet and outlet, access door, drain, shaft seal, guards for shaft, bearing and couplings, and extended lube lines

Rated fan performance has been tested in accordance with the requirements of AMCA Standard 210. Rated fan sound performance has been tested in accordance with the requirements of AMCA Standard 300.

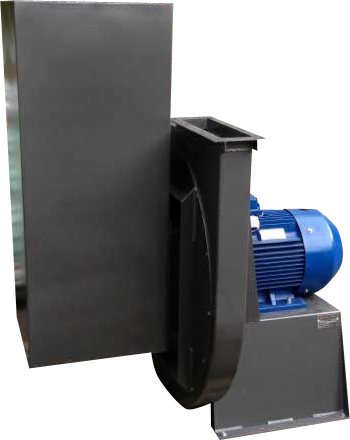

7

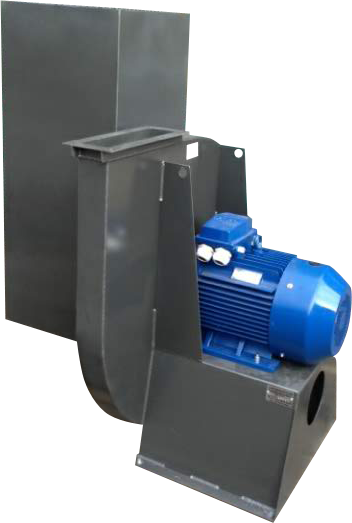

6
